SKU: DW350-60-14-14-1

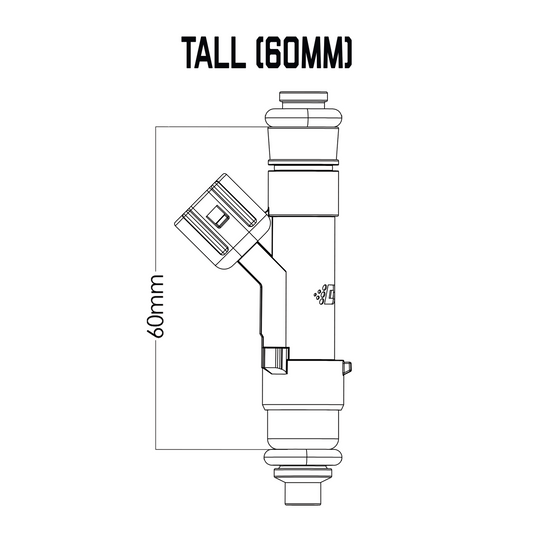

Single Universal Tall Injector (60mm)
Regular price From $59.00Regular priceUnit price per -
SKU: DW300-48-14-14-1

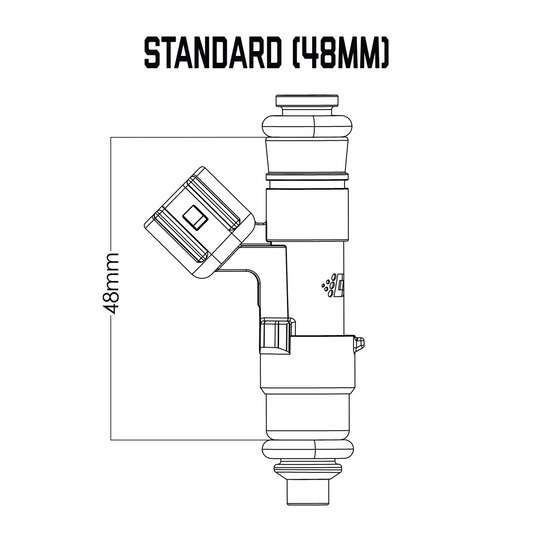

Single Universal Standard Injector (48mm)
Regular price From $59.00Regular priceUnit price per -
SKU: DW300-34-14-14-1

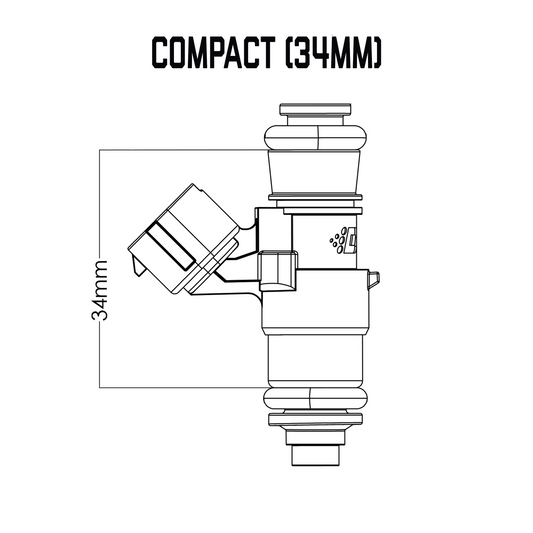

Single Universal Compact Injector (34mm)
Regular price From $59.00Regular priceUnit price per
Universal Injectors Data
| Part Number | Flow @3 Bar | Flow @4 Bar | O-Ring Height (mm) | Upper (mm) | Lower (mm) | Connector | Fuel | Tip | Impedance |
|---|---|---|---|---|---|---|---|---|---|
| DW300-34-14-14-1 | 310cc | 355cc | 34 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW450-34-14-14-1 | 450cc | 520cc | 34 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW550-34-14-14-1 | 590cc | 680cc | 34 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW700-34-14-14-1 | 820cc | 940cc | 34 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW1000-34-14-14-1 | 1020cc | 1170cc | 34 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW1250-34-14-14-1 | 1245cc | 1430cc | 34 | 14.5 | 14.5 | Jetronic (EV1) | All | YES | High |
| DW1500-34-14-14-1 | 1610cc | 1855cc | 34 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW2200-34-14-14-1 | 2230cc | 2560cc | 34 | 14.5 | 14.5 | Sumitomo (Denso) | Except MTBE | NO | High |
| DW2400-34-14-14-1 | 2405cc | 2760cc | 34 | 14.5 | 14.5 | Sumitomo (Denso) | Except MTBE | NO | High |
| DW300-48-14-14-1 | 270cc | 310cc | 48 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW550-48-14-14-1 | 525cc | 605cc | 48 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW650-48-14-14-1 | 660cc | 760cc | 48 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW750-48-14-14-1 | 790cc | 900cc | 48 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW1000-48-14-14-1 | 1005cc | 1150cc | 48 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW1250-48-14-14-1 | 1245cc | 1430cc | 52 | 14.5 | 14.5 | Jetronic (EV1) | All | YES | High |
| DW1500-48-14-14-1 | 1610cc | 1855cc | 48 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW2200-48-14-14-1 | 2230cc | 2560cc | 48 | 14.5 | 14.5 | Sumitomo (Denso) | Except MTBE | NO | High |
| DW2400-48-14-14-1 | 2405cc | 2760cc | 48 | 14.5 | 14.5 | Sumitomo (Denso) | Except MTBE | NO | High |
| DW350-60-14-14-1 | 370cc | 430cc | 60 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW440-60-14-14-1 | 490cc | 560cc | 60 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW550-60-14-14-1 | 525cc | 605cc | 60 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW650-60-14-14-1 | 660cc | 760cc | 60 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW800-60-14-14-1 | 900cc | 1030cc | 60 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW1000-60-14-14-1 | 1005cc | 1150cc | 60 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW1250-60-14-14-1 | 1245cc | 1430cc | 59 | 14.5 | 14.5 | Jetronic (EV1) | All | NO | High |
| DW1500-60-14-14-1 | 1610cc | 1855cc | 58 | 14.5 | 14.5 | Uscar (EV6) | All | NO | High |
| DW2200-60-14-14-1 | 2230cc | 2560cc | 58 | 14.5 | 14.5 | Sumitomo (Denso) | Except MTBE | NO | High |
| DW2400-60-14-14-1 | 2405cc | 2760cc | 58 | 14.5 | 14.5 | Sumitomo (Denso) | Except MTBE | NO | High |
